Installation Manual
Components
Hydronic Coil
Piping to the hydronic coil from the Pod must be < 100 ft in equivalent length, with < 35 ft of lift.

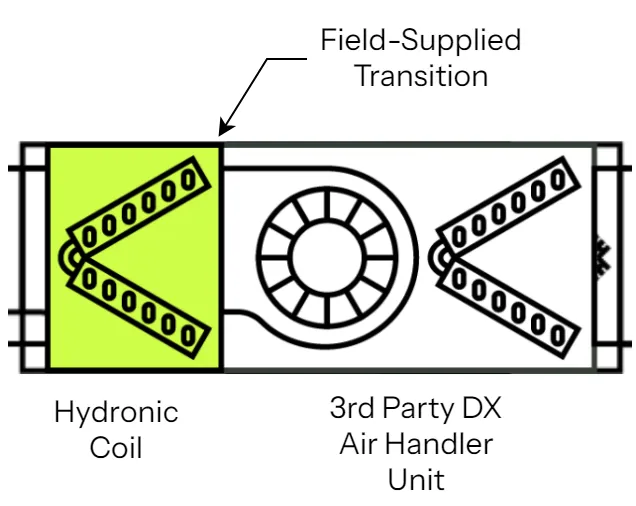

- Ensure duct transition to coil is adequate for proper, even air flow
- The hydronic coil can be installed vertically or horizontally
WARNING: Coil must be installed downstream of air filters, or the performance will be heavily degraded.
Slab Coil Dimensions
A-frame Coil Dimensionsss
Coil | Dry Weight |
|---|---|
Slab | 29 lbs |
A-Frame | 63 lbs |
Slab Coil Plumbing Connections
A-Frame Coil Plumbing Connections
A-Frame coil connections should be plumbed in parallel, not series.
WARNING: Failure to plumb coil in regard to orientation to airflow can significantly degrade performance.
