Low Voltage Wiring Diagram

Caution

WARNING: Do not power the Harvest Pod, or 3rd Party Air Handler, until all wiring is complete and correct. Wiring the Harvest Pod incorrectly may damage it.

1. Remove the thumb screws at the bottom and top of the pod to remove the front panel of the Pod and access the wiring connections.

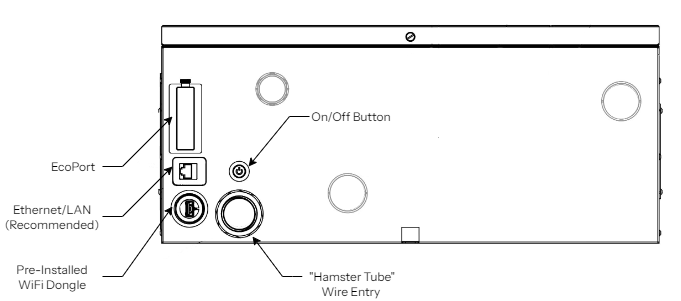

2. To make internal wiring connections, push wires through the “hamster tube” from the underside of the pod.



3. Wire the Pod. Follow the link below that best fits your installation scenario:

Hydronic heating only

24VAC controlled heat pumps
