Classic/Installer/Diagrams

Plumbing Diagram

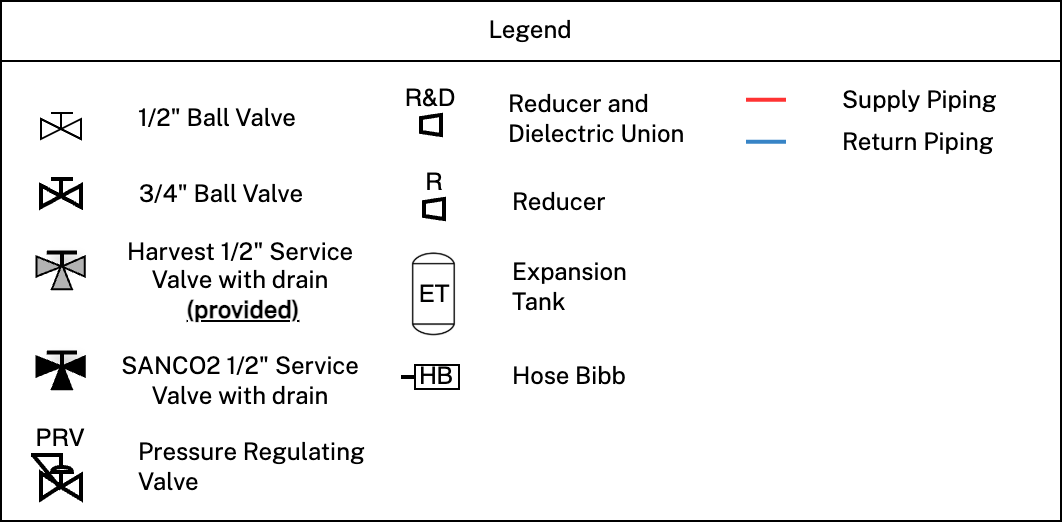

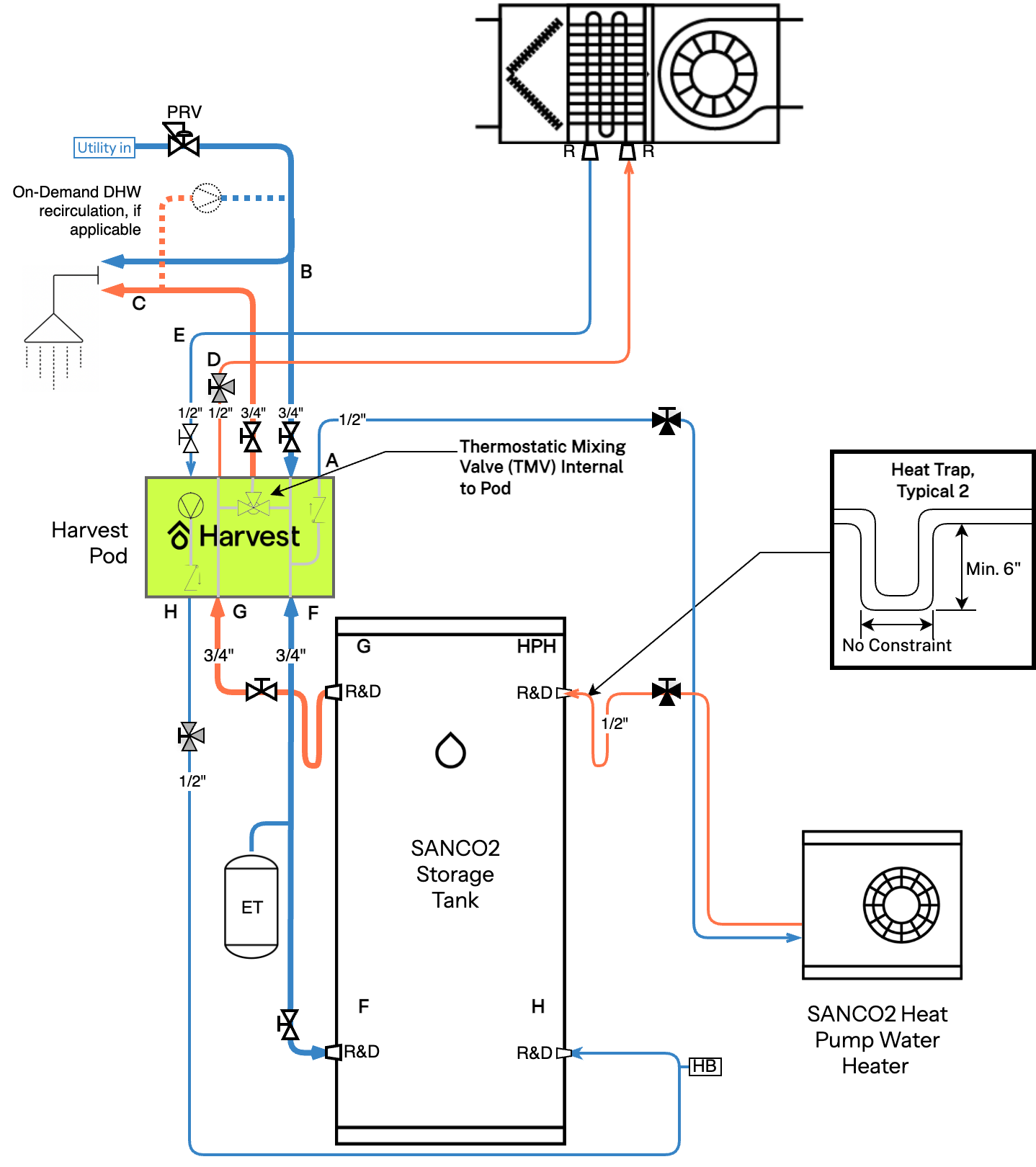

Single SANCO2 Plumbing

Section titled “Single SANCO2 Plumbing ”

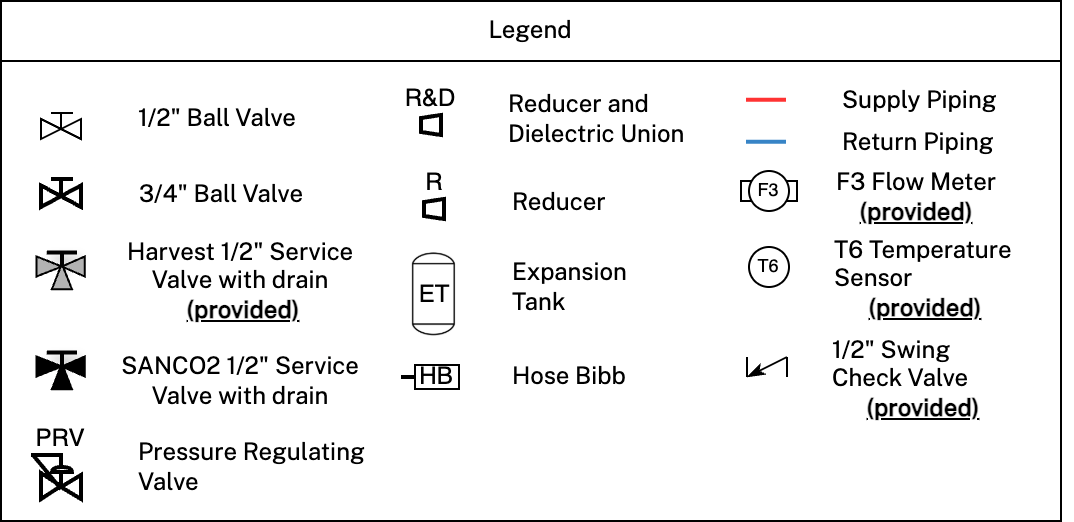

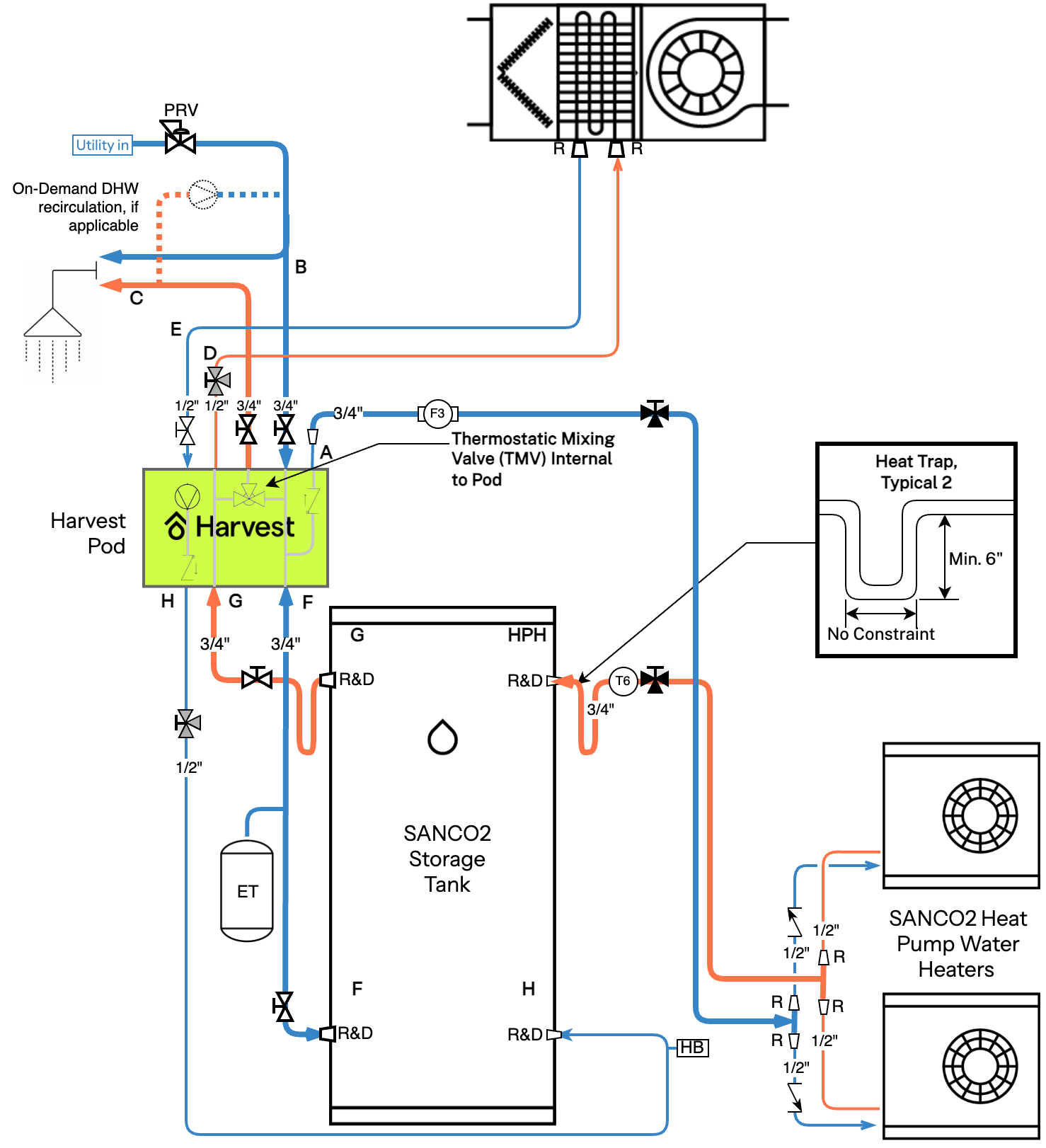

Twin SANCO2 Plumbing

Section titled “Twin SANCO2 Plumbing”

Note

A Twin-HPWH install kit is required for installation.

Double-tank Plumbing

Section titled “Double-tank Plumbing”

Caution

WARNING: Failure to minimize fittings and bends of the “bridge pipe” between the primary and secondary tank may significantly impact system performance.

It is HIGHLY recommended to use either a single piece of 3/4” PEX, or 3/4” copper with a long radius elbows to minimize the pressure drop along this bridge pipe.
