Harvest Pod
Location
The Pod is required to be installed in weather-protected space at a minimum, such as a garage, basement, crawlspace, indoor closet, or outdoor closet where there is no risk of freezing.
Recommended to be installed as close to tank as reasonable, and can be:
- Wall-hung near tank, or
- above the tank in closet

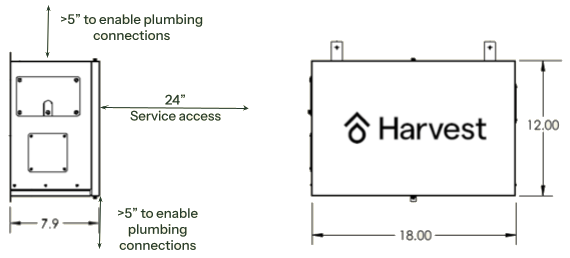

Dimensions and Clearances
Mininum 24” of clearance is required in front of pod for wiring installation and future service access.

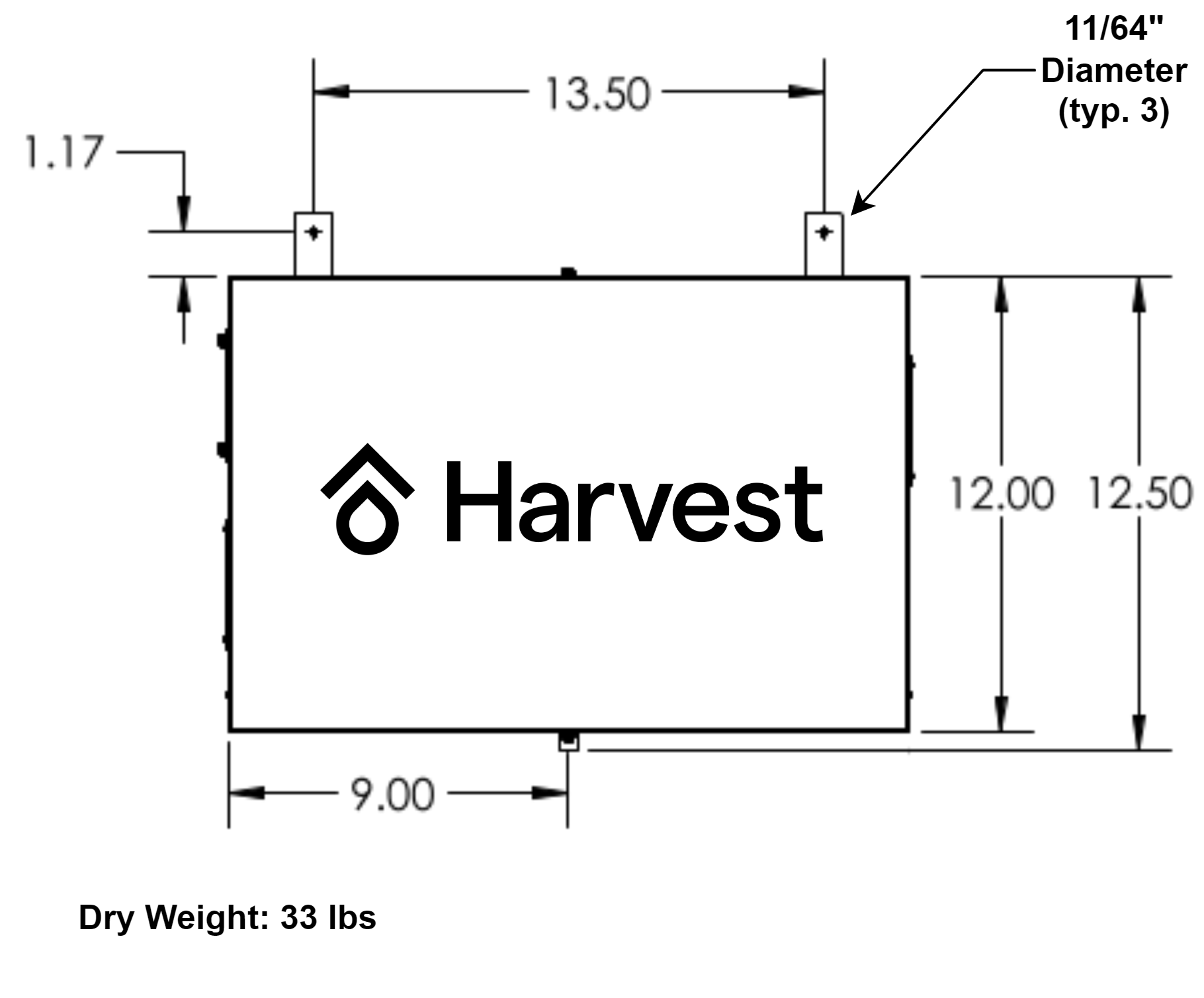

Mounting
Mount to studs or sturdy surface with screws using provided mounting holes.
Power
The pod will require a 120V power outlet for the included 24 VDC power supply (refer to Low Voltage Wiring Diagram).
Internet
The Harvest Pod will require either an Ethernet or WiFi connection. This enables over-the-air updates, access to weather forecasts, and remote monitoring of the system. Ethernet is the most robust and therefore recommended option. See Start Up for more info.
Plumbing Connections
| Size | |
|---|---|
| A: Heat Pump Cold | 1/2” NPT |
| B: Utility In | 3/4” NPT |
| C: DHW Hot | 3/4” NPT |
| D: Air Handler Supply | 1/2” NPT |
| E: Air Handler Return | 1/2” NPT |
| F: Cold Water to Tank | 3/4” NPT |
| G: Hot from Tank | 3/4” NPT |
| H: AHU Return to Tank | 1/2” NPT |
