AHU Wiring
AHU wiring for Hydronic only + Night Cooling (Gen3)
Section titled “AHU wiring for Hydronic only + Night Cooling (Gen3)”

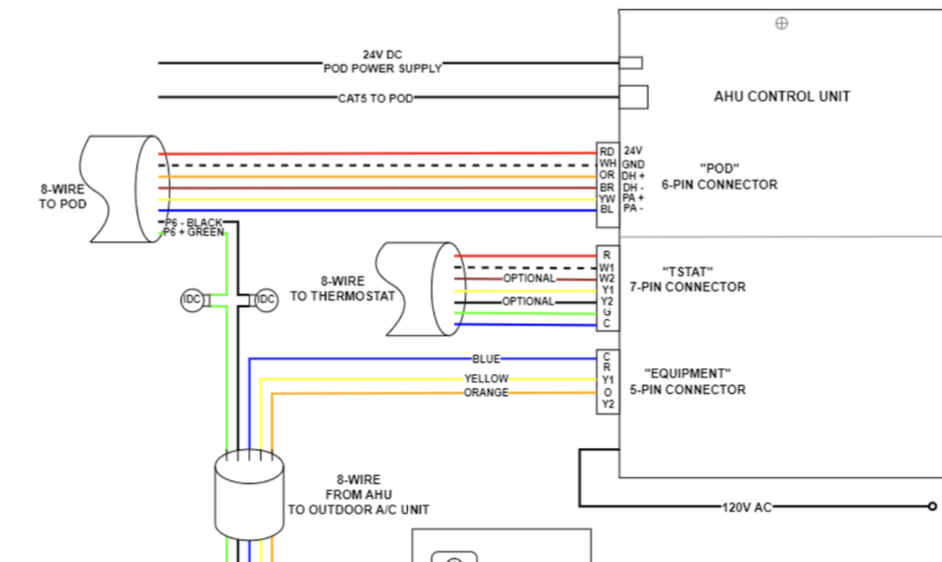

AHU wiring for Hydronic + HP A/C configuration (Gen3)
Section titled “AHU wiring for Hydronic + HP A/C configuration (Gen3)”

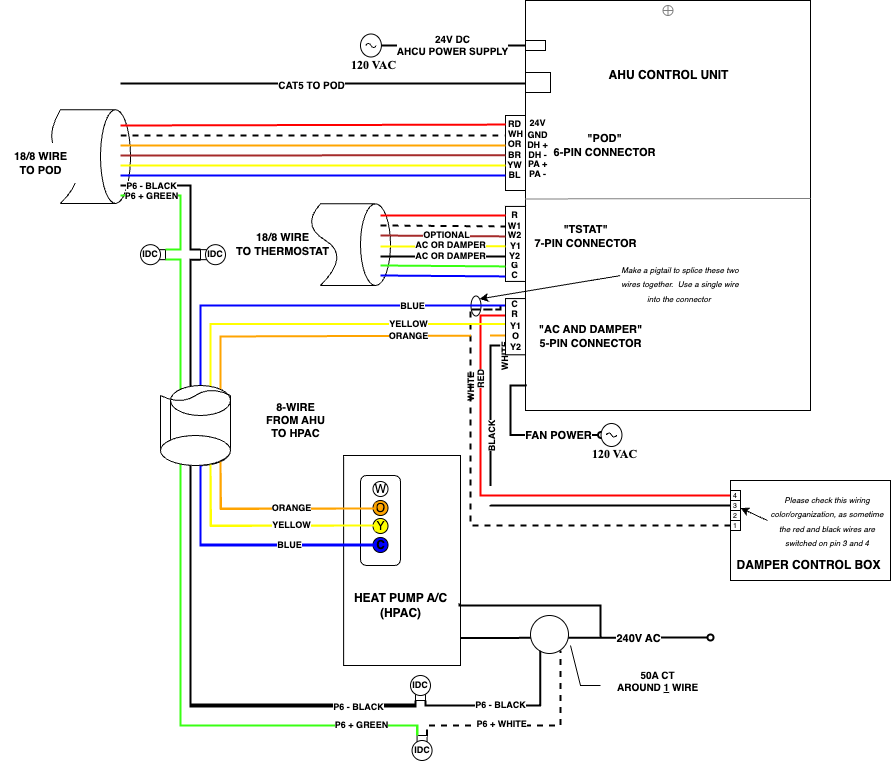

AHU wiring for Hydronic + HP A/C configuration + Night Cooling (Gen3)
Section titled “AHU wiring for Hydronic + HP A/C configuration + Night Cooling (Gen3)”

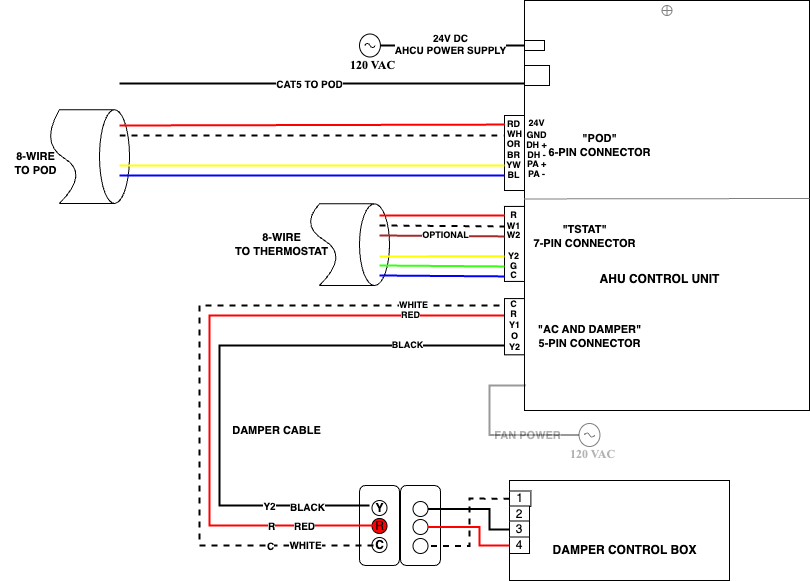

Pre-2024 AHU Wiring Diagrams

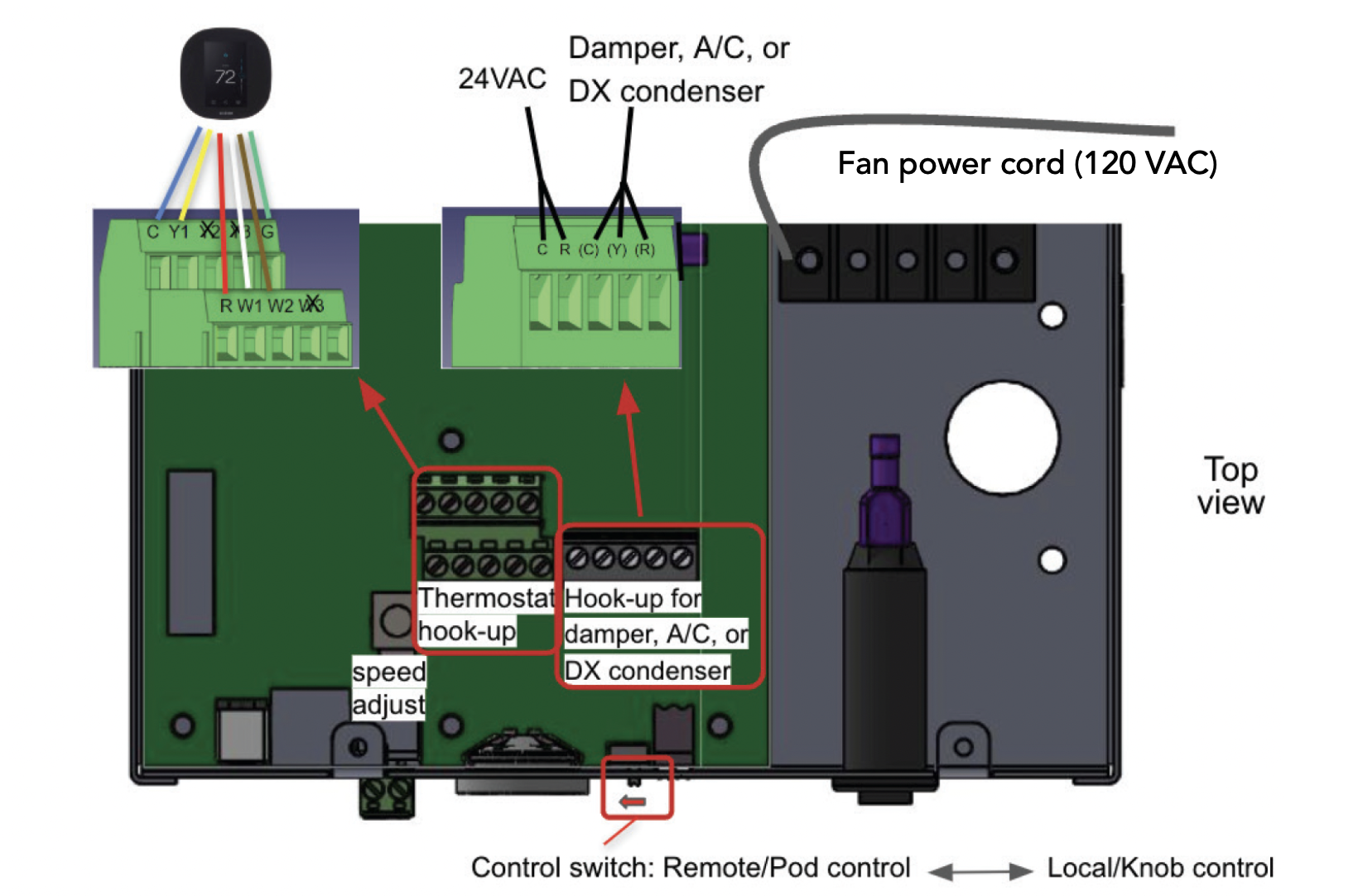

Section titled “Pre-2024 AHU Wiring Diagrams”AHU wiring (Gen2)
Section titled “AHU wiring (Gen2)”
