(Legacy) Optional ECOer Heat Pump AC

Please see the ECOer ESi Decades Extreme ODU instruction manual for installation directions. The Integration of the ECOer HPAC with the Harvest Pod is covered in the Low Voltage Wiring Diagram section.

Location

Section titled “Location ”

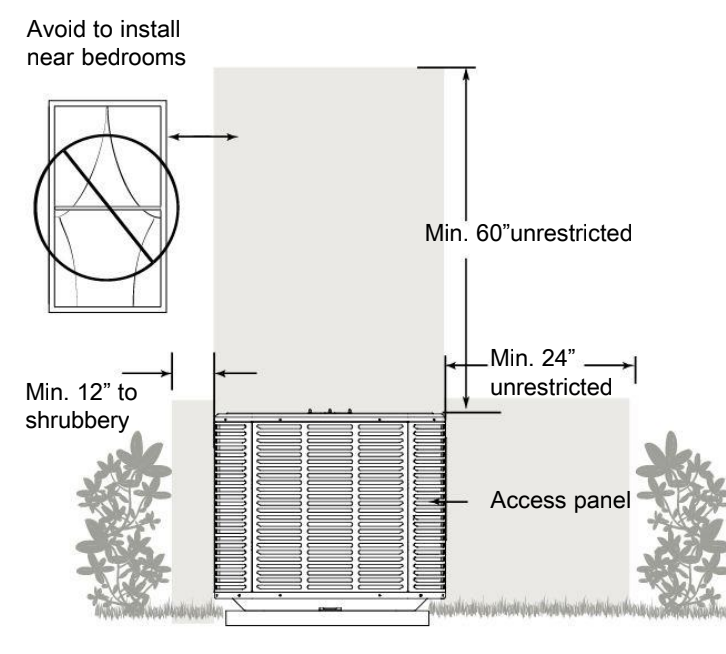

Source: ECOer ESi Decades Extreme ODU instruction manual

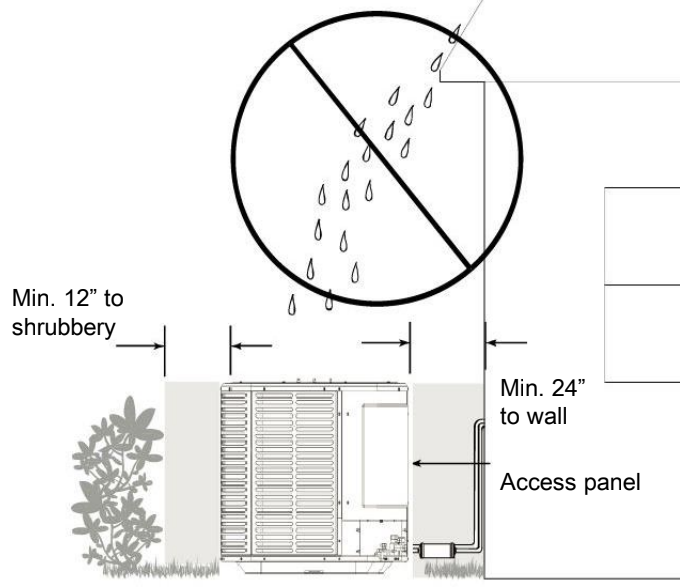

Source: ECOer ESi Decades Extreme ODU instruction manual
Source: ECOer ESi Decades Extreme ODU instruction manual
Source: ECOer ESi Decades Extreme ODU instruction manual

Powering the ECOer Heat Pump A/C

Section titled “Powering the ECOer Heat Pump A/C”

Electrical Requirements:

Section titled “Electrical Requirements:”
Power Supply:240V-1Ph-60Hz
Breaker Size:40A
RLA:17.5A
LRA:27.9A

A quick disconnect must be installed adjacent to the heat pump in accordance to NEC and local codes
