Pod S/N 1200–1899 manual LEGACY View the Pod S/N 1900+ manual →

Low Voltage Wiring Diagram

  1. Remove the thumb screws at the top and bottom of the pod to remove the front panel of the Pod and access the wiring connections.

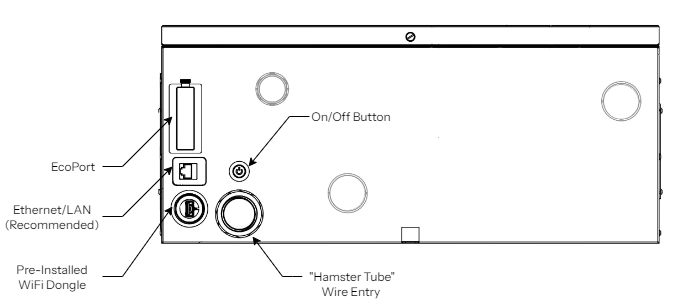

  2. To make internal wiring connections, push wires through the “hamster tube” from underside of the pod.

  3. Wire the Pod according to one of the diagrams below:
