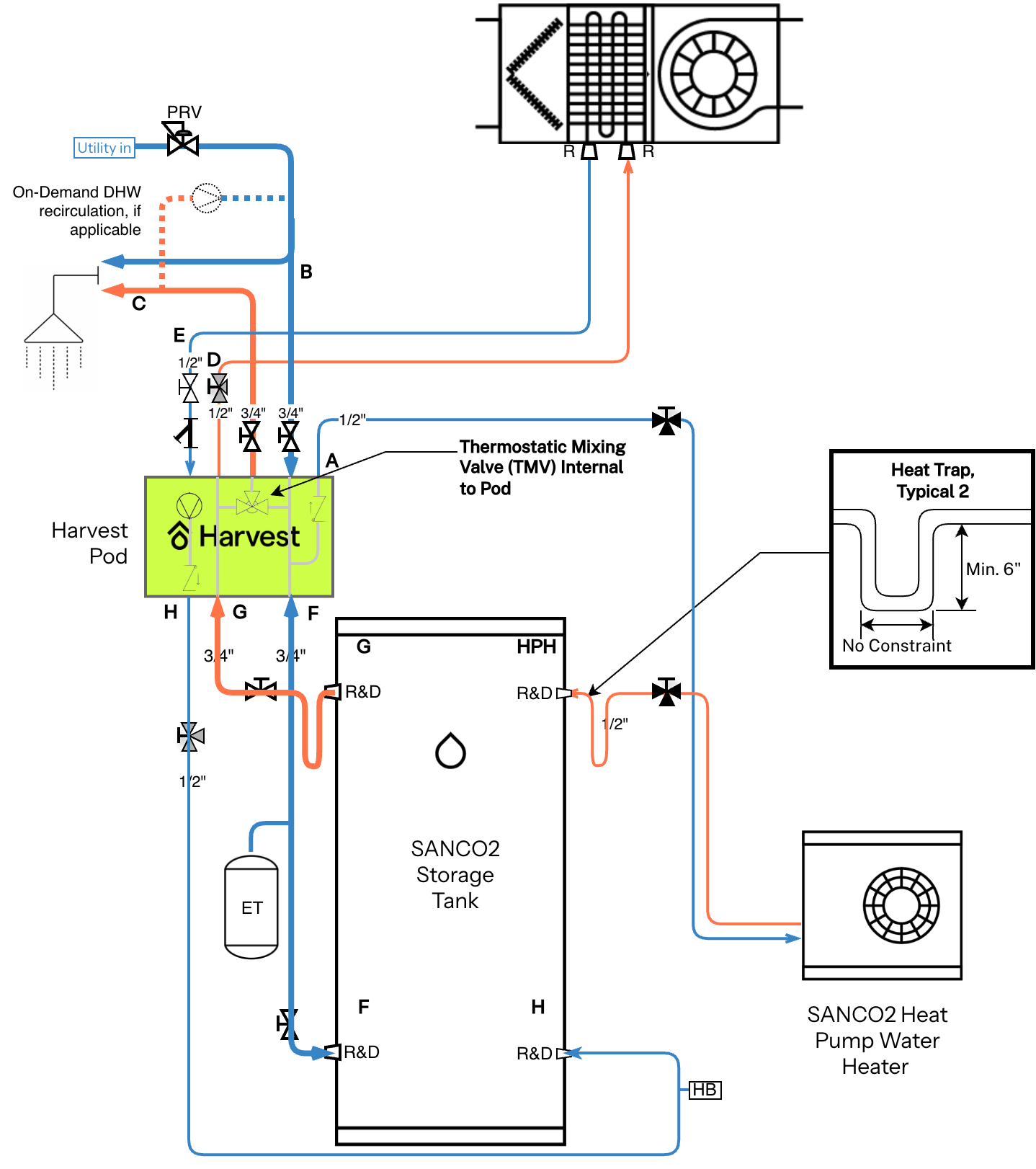

Single HPWH Plumbing Diagram

Caution

Only install additional plumbing features, such as DHW recirculation pumps, on plumbing lines B and C.

Caution

WARNING: Maximum incoming pressure not to exceed 75 PSI with pressure reducing valve.

Caution

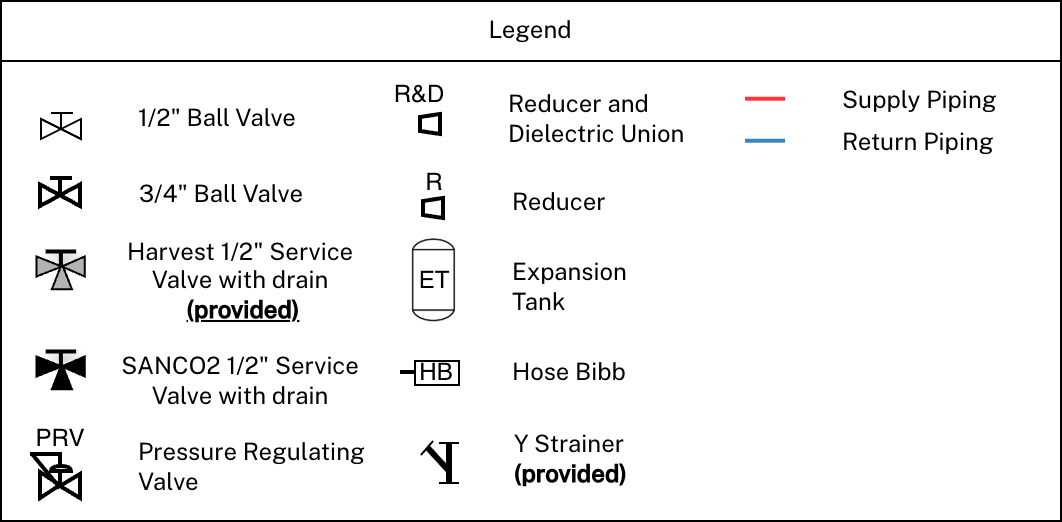

WARNING: Be sure to include all valves, meters, sensors and heat traps shown in the drawings in this manual. The system will not operate properly without these, and in some cases, may not operate safely.

Caution

WARNING: Before performing any plumbing work, ensure the Pod is completely powered off and the front cover is securely in place. Failure to do so may result in water damage to the Pod’s electronics, which is not covered under warranty.

Note

NOTE: See Harvest Classic Tech Specs for full plumbing schedule

See links for the:

Plumbing Connections for the CO2 HPWH

Plumbing Connections for the Tank

Plumbing Connections for the Harvest Pod

Plumbing Connections for the Hydronic Coil
