Pod Low Voltage Wiring

Caution

WARNING: Do not power the Harvest Pod or 3rd Party Air Handler until all wiring is complete and correct. Wiring Harvest Pod incorrectly may damage the Pod.

1. Remove the thumb screws at the bottom and top of the pod to remove the front panel of the Pod and access the wiring connections.

2. To make internal wiring connections, push wires through the “hamster tube” from underside of the pod.



3. Wire the Pod according to the following diagram:

Tank Wiring

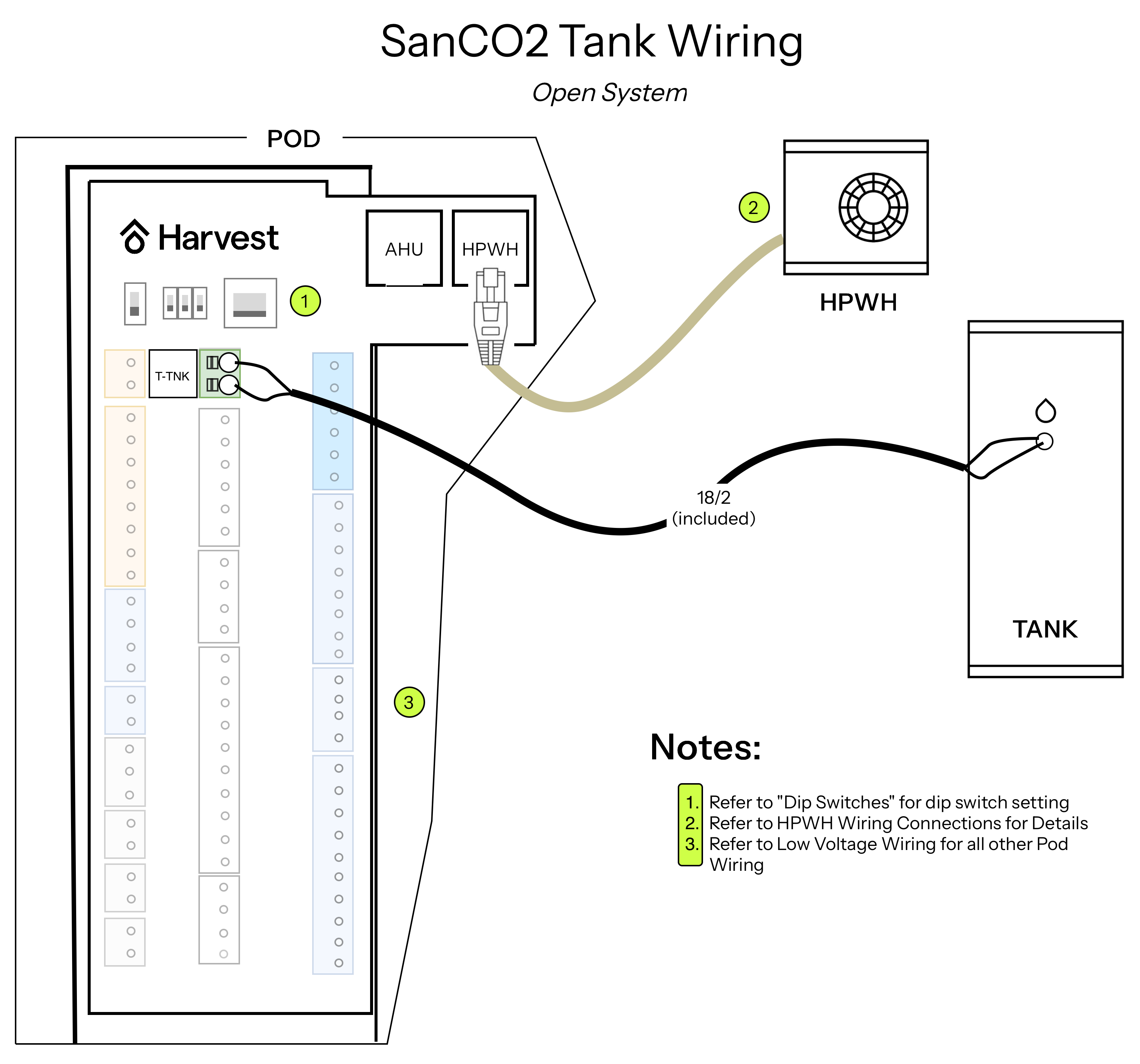

SANCO2 Tank

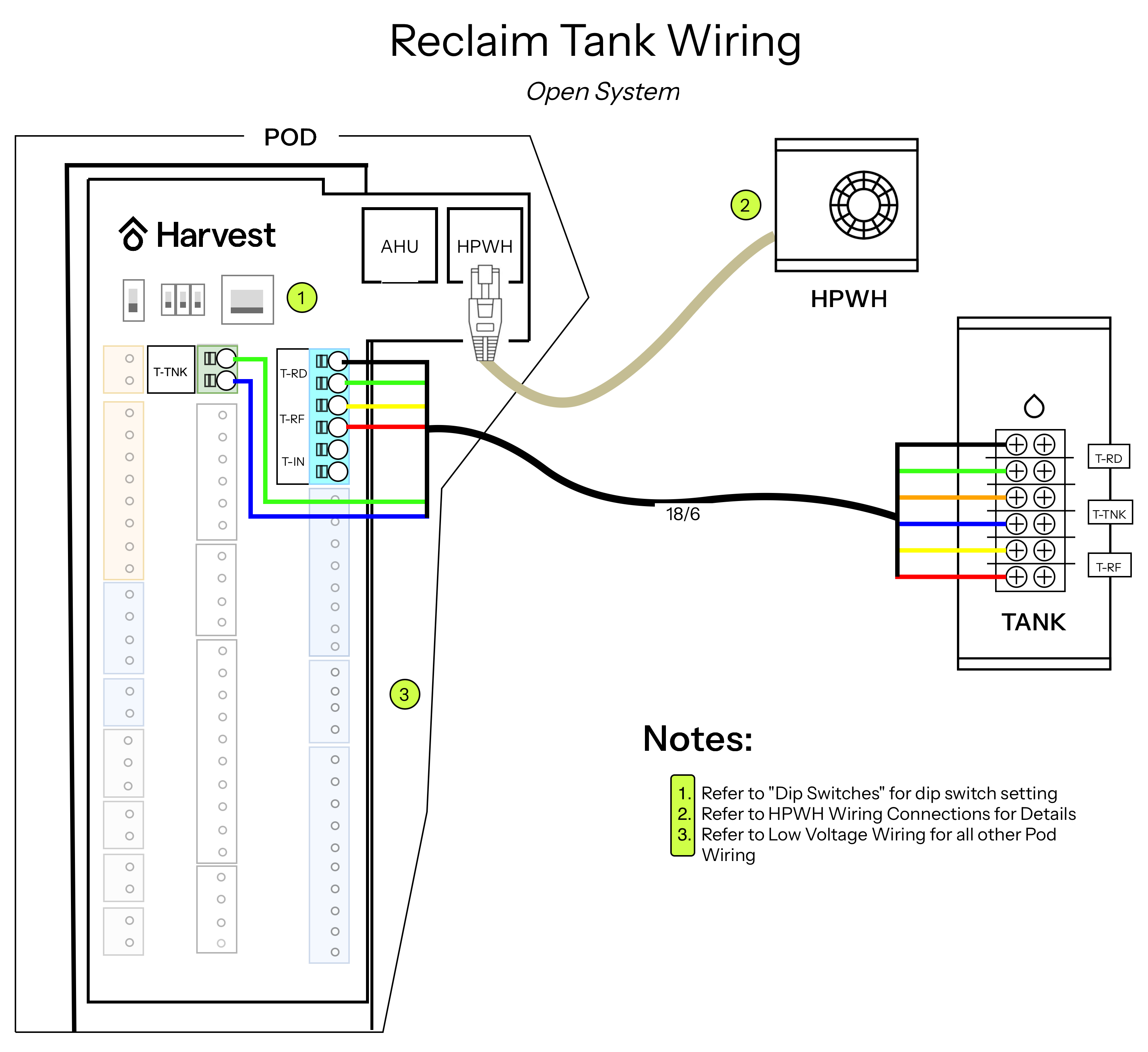

Reclaim Tank

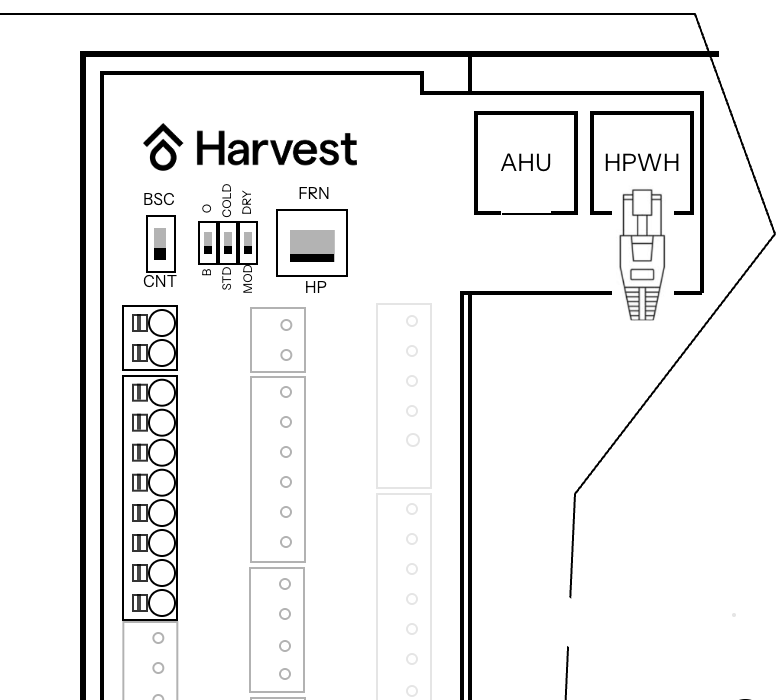

Dip Switches

• CNT/BSC switch: CNT (Control) enables smart thermal battery functionality. BSC (Basic) enables DHW and limited heating with no smart thermal battery functionality. Basic can provide service continuity in case of controller issues until those issues are fixed.
• O/B switch: Set is not used in this configuration
• STD/COLD switch: Set to STD unless you are in a climate with a heating design temperature below 20F.
• MOD/DRY switch: Set to MOD for modbus control of the heat pump unless you are using the legacy dry-contact method for SANCO2 HPWHs.
• FRN/HP switch: This switch is not used in this configuration
