Pod S/N 1900+ manual View the Pod S/N 1200–1899 manual →

Pod Low Voltage Wiring

  1. Remove the thumb screws at the top and bottom of the pod to remove the front panel of the Pod and access the wiring connections.

  2. To make internal wiring connections, push wires through the “hamster tube” from underside of the pod.

  3. Wire the Pod. Follow the link below that best fits your installation scenario:

Hydronic Heating Only

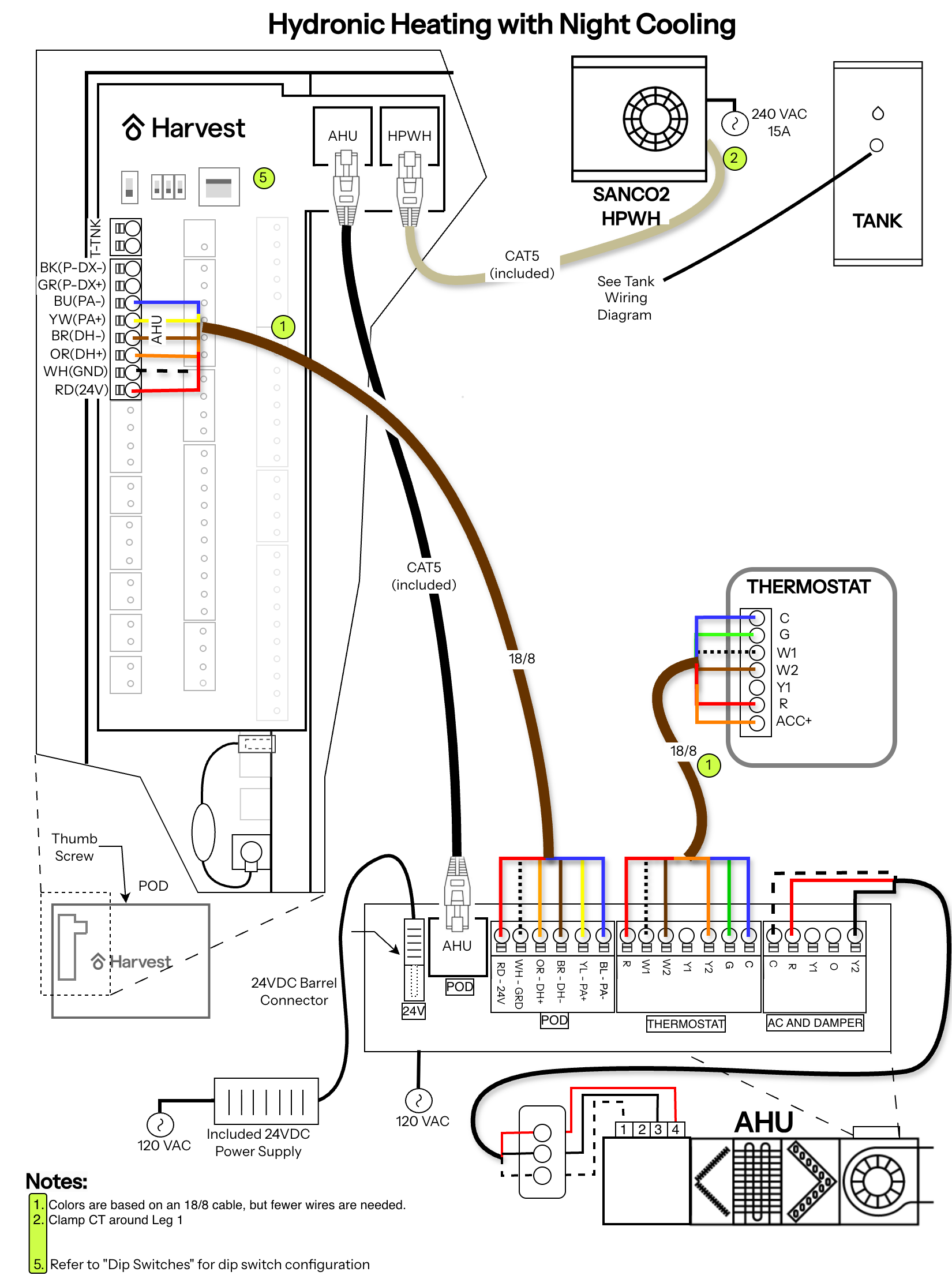

Hydronic Heating with Night Cooling

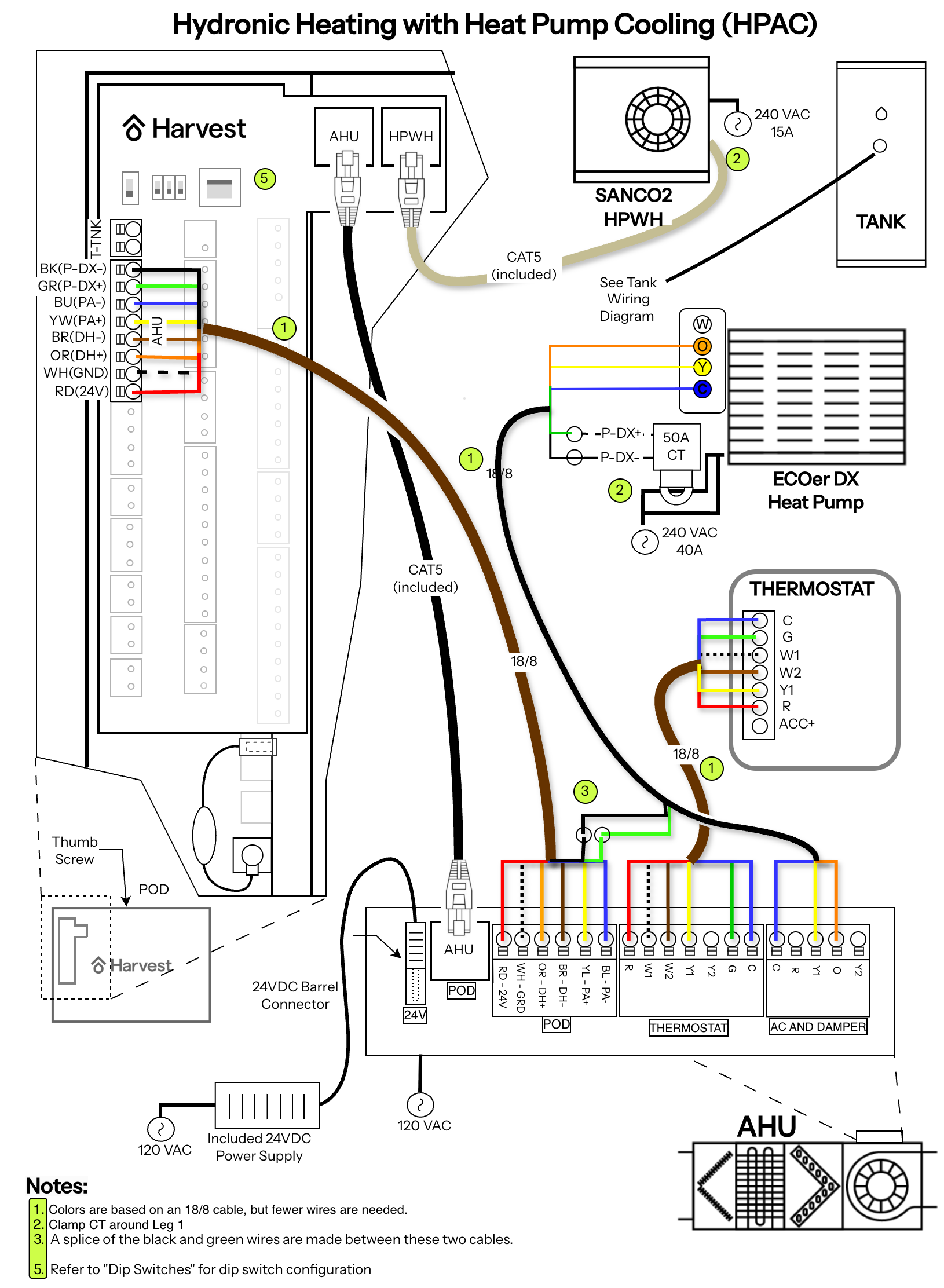

Hydronic Heating with Heat Pump Cooling (HPAC)

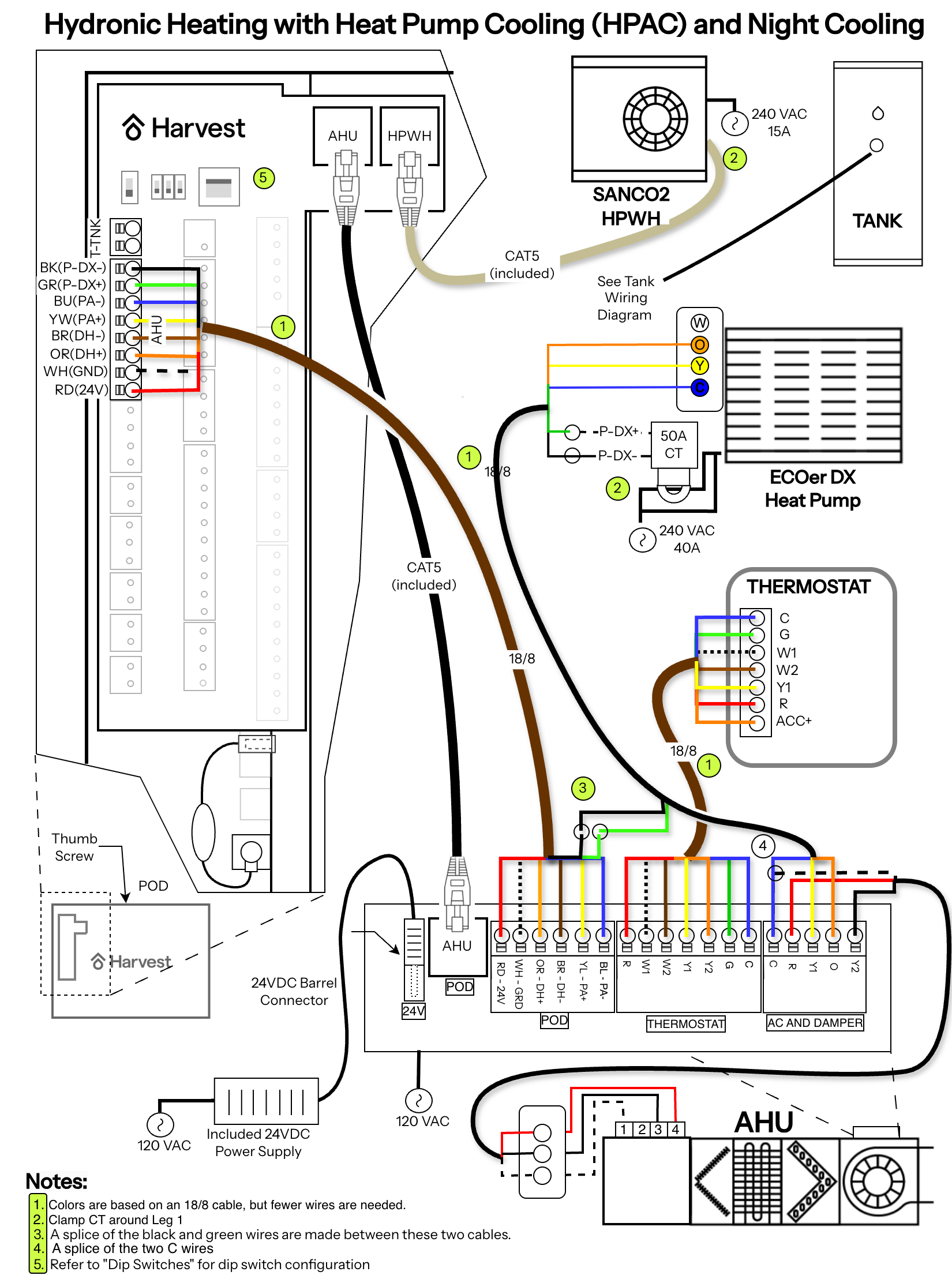

Hydronic Heating with Heat Pump Cooling (HPAC) and Night Cooling
